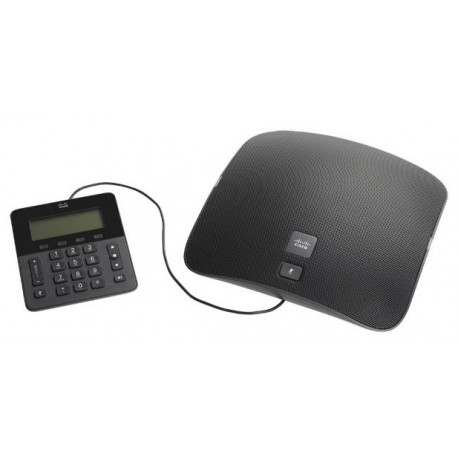

The Cisco® Unified IP Conference Phone 8831 enhances people-centric communications, combining superior high‑definition (HD) audio performance and 360-degree coverage for all sizes of conference rooms and executive offices. It provides an audiophile sound experience with a full-duplex two-way wideband (G.722) audio hands-free speaker.
The IP Conference Phone 8831 is a simple, scalable solution that meets the challenges of the most diverse rooms. It provides flexible deployment options and expansion by using optional extension microphones that can be wired or wireless (Digital Equipment Cordless Telephone [DECT]) with a daisy-chain configuration of two units.
The IP Conference Phone 8831 has an industrial design with enhanced ergonomics that puts the user first. It offers a detached control panel so that the display may be easily viewed without having to move the entire unit. It also provides easy view of device mute status from all sides.
Supported on Cisco Unified Communications Manager and Business Edition systems, the IP Conference Phone 8831 delivers a more productive, acoustically pleasing, and secure communications experience across sites and participants.
Features and Benefits
The Cisco Unified IP Conference Phone 8831 offers many improvements. New features include:
●Superior wideband acoustics with the first two-element speaker in a conference phone; this feature allows the phone to capture the full voice spectrum without having to compromise with a single-element speaker
●Expanded room coverage with support for daisy chaining two units
●Support for optional DECT wireless extension microphone: sold separately
●Session Initiation Protocol (SIP) signaling
●Device authentication and signaling encryption using Transport Layer Security (TLS) with Advanced Encryption Standard 128 (AES-128)
●Media encryption using Secure Real-Time Transport Protocol (SRTP) with AES-128
Table 1 lists the features and benefits of the Cisco Unified IP Conference Phone 8831.
Table 1.Features and Benefits
Superior wideband acoustics
●160 Hz to 20 kHz, +/-3 dB.
●The latest in wideband codecs for maximum voice bandwidth.
●Enhanced speech quality and speaker recognition.
92-dB SPL peak output*
Expanded room coverage
●160-degrees conical pattern provides even coverage of listening area.
●Four Hemi-Cardioid microphones are perfectly spaced so that they combine to provide a 180-degree pick-up pattern around the device. Speech is captured at the same level at all points around the Cisco Unified IP Conference Phone 8831.
●Ability to grow to fit a variety of room needs.
◦Small Office (base unit)
◦Standard Conference Room (base unit and 2 wired or wireless extension microphones)
◦Boardroom (daisy chaining two base units)
◦Large Boardroom (daisy chaining two base units and 2 wired or wireless extension microphones)
Microphone Accessory Options
This microphone extends the operational range of the Cisco Unified IP Conference Phone 8831 with even coverage around the periphery of the device with 7 feet of additional reach.
DECT wireless microphone for the Cisco Unified IP Conference Phone 8831 provides additional coverage with the added flexibility of 300 feet of range.
IEEE 802.3af line power
Local power supply is not required.
Cisco Power Cube 3
This power cube uses a standard Cisco Unified IP Phone Power Supply for non-Power over Ethernet (PoE) deployments. It is required for daisy chaining two units together.
Cisco Unified Communications Manager
The phone supports Cisco Unified Communications Manager (Cisco UCM) Releases 8.5(1), 8.6(2), 9.0, and later.
Cisco Business Edition 3000
The phone is supported on the Cisco Business Edition 3000 Releases 8.6(1) and later.
Cisco Business Edition 6000
The phone is supported on the Cisco Business Edition 6000 Releases 8.6(5) and later.
Cisco Unified Communications Manager Express
The phone is supported with CME 10.0 and above. On IOS 15.4(1)T and later with Fast Track Support.
Cisco Hosted Collaboration Solution
The phone is supported with 8.6(2) and later (using supported UCM versions above).
